顶针 苏州
顶针-用于顶起芯片，配合吸咀来拾取芯片
主要有10度，15度和8度

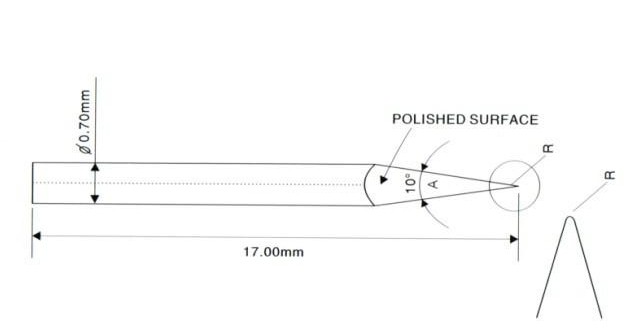

直径 0.7mm 长度 15mm, 17mm,18mm

顶针 苏州









编  号 规格 材料 长度(mm) 直径(mm) 角度 导角半径(R)
DBE-1700-8-015 顶针 钨钢 17.00 0.7 8.0 0.015
DBE-1700-8-022 顶针 钨钢 17.00 0.7 8.0 0.022
DBE-1700-8-025 顶针 钨钢 17.00 0.7 8.0 0.025
DBE-1700-10-015 顶针 钨钢 17.00 0.7 10.0 0.015
DBE-1700-10-022 顶针 钨钢 17.00 0.7 10.0 0.022
DBE-1700-10-025 顶针 钨钢 17.00 0.7 10.0 0.025
DBE-1700-15-015 顶针 钨钢 17.00 0.7 15.0 0.015
DBE-1700-15-022 顶针 钨钢 17.00 0.7 15.0 0.022
DBE-1700-15-025 顶针 钨钢 17.00 0.7 15.0 0.025
