Home>Assembleon Topaz smt nozzle



Assembleon Topaz SMT NOZZLE



Part Number (OEM) Description Remark
9498 396 03149 NOZZLE CPL3 (5PC)  　
9498 396 03150  NOZZLE CPL4 (5PC)  　
5322 360 10443  Nozzle, O2 TE  PA 2744-30
5322 360 10444  Nozzle, O3 TE 　
 9466 918 26731 SL047 NOZZLE 　
5322 360 10447  Nozzle, I2 TE  PA 2744-60
5322 360 10448  Nozzle, I3 TE  PA 2744-70



PHILIPS SMT NOZZLE



Assembleon Topaz SMT NOZZLE



Part Number (OEM) Description

NAFCM1

PHILIPS SMT NOZZLE 0.88mmX0.50mm(CUSTOM)

946602747001

0.95mm×0.55mm(PA2747/00)

946602747201

1.3mm×0.88mm(PA2747/20)

946602747301

2.5mm×1.5mm(PA2747/30)NZ.




ASSEMBLEON TOPAZ-X SMT NOZZLE



Assembleon Topaz SMT NOZZLE TOPAZ-X



Part Number (OEM) Description Remark
5322 360 10486 NOZZLE 73F Nozzle 73F assy
5322 360 10485 NOZZLE 72F Nozzle 72F assy
5322 360 10484 NOZZLE 71F Nozzle 71F assy
5322 502 14663 SCREW Screw M1.4*0.3
5322 360 10489 BLOCK NOZZLE Nozzle block
5322 492 11797 SPRING Spring for nozzle type 71F and 72F
9466 029 62471 Nozzle 71(PA 2962/47) Nozzle 71 for all machine
9466 029 62481 Nozzle 72(PA 2962/48) Nozzle 72 for all machine
9965 000 02777 Nozzle 73A(PA 2962/43) Nozzle 73A assy
5322 360 10495 Nozzle 74A(PA 2962/44) Nozzle 74A assy
5322 530 51373 O-ring O-ring P4
5322 360 10496 Nozzle 76A(PA 2962/46) Nozzle 76A assy



ASSEMBLEON EMERALD SMT NOZZLE



Assembleon Topaz SMT NOZZLE EMERALD



Part Number (OEM) Description Remark
5322 360 10198 NOZZLE A emerald Type 31
5322 360 10199 NOZZLE B emerald Type 32-1
5322 360 10201 NOZZLE C emerald Type 32-2
5322 360 10202 NOZZLE D emerald Type 33
5322 360 10203 NOZZLE E emerald Type 34
5322 360 10272 NOZZLE AB Melf nozzle
5322 466 10892 DIFFUSERPLATE Part of nozzle type 12-1
5322 492 71713 LEAF SPRING HEAD 1,2 leaf spring for nozzle holder
5322 256 92337 NOZZLE HOLDER HEAD 1,2
5322 502 60165 Screw M2*3 Screw for leaf spring M2*3
5322 530 51373 O-RING,P4 O-ring for type 33
5322 530 51374 O-RING,P9 O-ring for type 34





ASSEMBLEON EMERALD TOPAZ SMT NOZZLE HOLDER

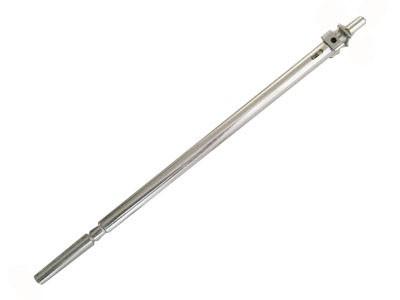

Assembleon Topaz SMT NOZZLE Shaft



Part Number (OEM) Description
--
KV8-M7106-70
--
 YV100II SHAFT NOZZLE HOLDER
YV100X SHAFT NOZZLE HOLDER
YVL88 SHAFT





ASSEMBLEON TOPAZ EMERALD SHAFT NOZZLE



Assembleon Topaz SMT NOZZLE Shaft



Part Number (OEM) Description
KV8-M7135-A0X
KM9-M7106-00X
 SHAFT HEAD ASSY
SHAFT HEAD ASSY

ASSEMBLEON EMRALD X (FNC) SMT NOZZLE



YAMAHA YV88X PHILIPS EMRALD X SMT NOZZLE PART LIST

Assembleon Topaz SMT NOZZLE EMRALD X (FNC)





Part Number (OEM) Description Remark
9965 000 04762 NOZZLE 61F NOZZLE 61F ASSEMBLY
9965 000 05406 NOZZLE HOLDER NOZZLE HOLDER FOR 61&62/63F
9965 000 04753 SPRING SPRING NOZZLE
5322 502 14662 SCREW SCREW NOZZLE
9965 000 04805 O-RING O-RING SS-038
9965 000 04761 NOZZLE 62F NOZZLE 62F ASSEMBLY
9965 000 04759 NOZZLE 63F NOZZLE 63F ASSEMBLY
9965 000 04758 NOZZLE 64F NOZZLE 64F ASSEMBLY
5322 530 51373 O-RING O-RING P4
9965 000 04765 SET SCREW SET SCREW M3*3
9965 000 04757 NOZZLE 65F NOZZLE 65F ASSEMBLY
5322 530 51361 O-RING O-RING P7
9965 000 04756 NOZZLE 66F NOZZLE 66F ASSEMBLY
9965 000 04754 O-RING O-RING(SS-065)
9965 000 04755 NOZZLE HOLDER NOZZLE HOLDER ASSEMBLY
5322 492 71713 LEAF SPRING LEAF SPRING
5322 502 60165 SCREW SCREW
5322 532 12794 WASHER WASHER
9965 000 04766 SET SCREW SET SCREW M3*3
5322 360 10474 NOZZLE 61A NOZZLE 61A type
9466 029 62971 NOZZLE 61i NOZZLE 61for Xi machine
5322 492 11487 SPRING Spring nozzle 61A & 62A
9965 000 03879 O-RING O-ring for 61i & 62i nozzle
5322 360 10475 NOZZLE 62A Nozzle 62A type
9466 029 62981 NOZZLE 62i Nozzle 62 for Xi machine
5322 360 10476 NOZZLE 63A Nozzle 63A type
5322 360 10497 NOZZLE 64A Nozzle 64A type
5322 530 51373 O-RING O-ring P4 for nozzle 64A
5322 360 10477 NOZZLE 65A Nozzle 65A type
5322 530 51374 O-RING O-ring P9 for nozzle 65A
5322 360 10478 NOZZLE 66A Nozzle 66A type MELF



ASSEMBLEON SAPPHIRE SMT NOZZLE



Assembleon Topaz SMT NOZZLE SAPPHIRE / COMET





Part Number Description Remark
5322 360 10335 Nozzle type 51 Nozzle type 51
9965 000 07827 Nozzle type 51 special Nozzle type 51 special Increases vacuum range
5322 479 60083 Nozzle type 52  Nozzle type 52
5322 479 60084 Nozzle type 53 Nozzle type 53
5322 360 10289 Nozzle type 54 Nozzle type 54
5322 530 51359 O-RING O-RING FOR TYPE 54 NOZZLE
5322 360 10291 Nozzle type 55 Nozzle type 55
5322 530 51361 O-RING O-RING FOR TYPE 55 NOZZLE
5322 466 83044 Mirror plate MIRROR plate for nozzle types 51,52,53
5322 466 83045 Mirror plate MIRROR plate for nozzle type 54
5322 530 10389 O-ring O-ring S-6



PHILIPS ASSEMBLEON GEM EMERALD TOPAZ SHAFT NOZZLE





KM1-M710S-AOX

KV8-M712S-AOX

KGB-M712S-AOX
KGB-M711S-AOX KGT-M711S-A0X KGT-M711S-B0X

KHW-M7140-B0X KHW-M711S-A0X
KM1-M7106-00X KV8-M7106-OOX KGB-M71S0-5OX

KGT-M7106-OOX





YAMAHA KV6-M7113 HSD DISPENDING NOZZLE PHILIPS



Assembleon Topaz SMT NOZZLE KV6



Part Number (OEM) Description

KV6-M7113-1XX

KV6-M7113-2XX
KV6-M7113-3XX
KV6-M7113-4XX
KV6-M7113-5XX
KV6-M7113-6XX
KV6-M7113-XXX
KV6-M7113-XXX
KV6-M7113-XXX

YAMAHA YMH KV6-M7113 HSD DISPENDING NOZZLE PHILIPS 2D/2S Ø0.7/ Ø0.4 P=0.9
YMH KV6-M7113 HSD DISP. NZ. 2D/2S Ø0.8/ Ø0.5 P=1.3
YMH KV6-M7113 HSD DISP. NZ. 2D/2S Ø1.3/ Ø0.9 P=1.8
YMH KV6-M7113 HSD DISP. NZ. 1D/1S Ø0.7/ Ø0.4
YMH KV6-M7113 HSD DISP. NZ. 1D/1S Ø0.8/ Ø0.5
YMH KV6-M7113 HSD DISP. NZ. 1D/1S Ø1.5/ Ø1.1
YMH KV6-M7113 HSD DISP. NZ. 2D/2S Ø0.7/ Ø0.4 P=0.8
YMH KV6-M7113 HSD DISP. NZ. 1D/1S Ø1.5/ Ø1.1
YMH KV6-M7113 HSD DISP. NZ. 1D/1S Ø1.65/ Ø1.25





YAMAHA PHILIPS YV64D DISPENDING NOZZLE





Part Number (OEM) Description

KG3-M7113-40X

KM4-M7113-10X
KM4-M7113-20X
KM4-M7113-30X
KM4-M7113-40X
KM4-M7113-50X

YAMAHA YV64D DISPENDING NOZZLE PHILIPS 2D/2S Ø 0.7/ Ø 0.4 P=0.8 (1608)
YV64D DISP NZ. 2D/2S Ø 0.8/ Ø 0.5 P=1.0(2125,3216)
YV64D DISP NZ. 1D/2S Ø 0.6/ Ø 0.3 (1608 & 2125)
YV64D DISP NZ. 1D/2S Ø 0.8/ Ø 0.5 (CONNECTOR)
YV64D DISP NZ. 1D/2S ID:Ø 1.5 ** (SOP & QFP)
YV64D DISP NZ. 1D/2S ID:Ø 1.5 ** (QFP & PLCC)



YAMAHA PHILIPS YM84V/YV66S SMT NOZZLE



Part Number (OEM) Description
K38 - M7113 - H00
K38 - M7113 - B03
K38 - M7113 - C00
K38 - M7113 - D01
K38 - M7113 - E02
 YMH NZ. Ø 1.1X0.7 / Ø 0.4
YMH NZ. Ø 1.8X1.1 / Ø 0.8
YMH NZ. Ø 3.0 / Ø 2.0
YMH NZ. Ø 5.0 / Ø 3.5
YMH NZ. Ø 1.1 / Ø 0.7



YAMAHA PHILIPS YM51VM11 SMT NOZZLE



Part Number (OEM) Description

KG9 - M7113 - 100
KG9 - M7113 - 200
KG9 - M7113 - 300

YM51VMII NZ. S, COMP. Ø 3.0 / Ø 2.0
YM51VMII NZ. M Ø 10.0 / Ø 7.0
YM51VMII NZ. L Ø 15.0 / Ø 12.0

YAMAHA PHILIPS YM84 SMT NOZZLE



Part Number (OEM) Description

KH - M7113 - C00
KH - M7113 - B00

YM 84 NZ. ID : Ø 0.7 (TYPE 2)
YM 84 NZ. ID : Ø 2.0 (TYPE 8)
